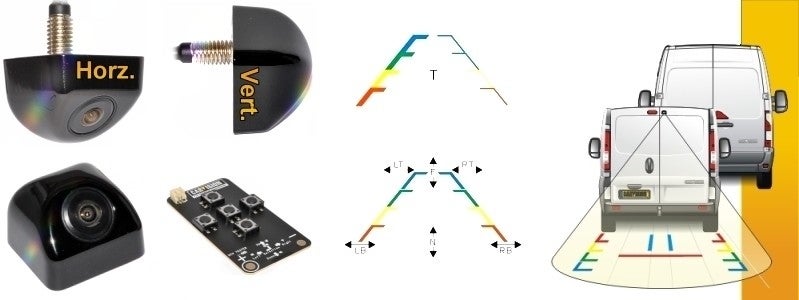

CV-130WDR-H (Horizontaal of Verticaal)

Model number:
CV-130WDR H Horizontal mounting
CV-130WDR V Vertical mounting

Technische kenmerken:

CCD sensor: SONY HAD II ccd sensor
High Resolution: 380 TVL
Video output: NTSC, 1.0 Volt p-p composite : 75 Ohm
Shutter system: auto - 1/60 ~ 1/100.000 sec
S/N Ratio: More then 52 dB
DNR: Digital noise reduction : ON / OFF
WDR: Wide Dynamic Range : OFF / ON (adjustable)
Parking Lines: OFF / ON (adjustable)
Mirror-Normal: (adjustable)
Min. Illumination: 0.01 Lux
View angle: 165° Diagonal - 130° Horizontal - 95° Vertical
Lens: f = 1.8mm
Input Voltage: DC 12V / 100mA
Operating temp.: -20°C - +70°C
Dimensions: 32 x 30 x 24.5mm
